Sketches and Plans


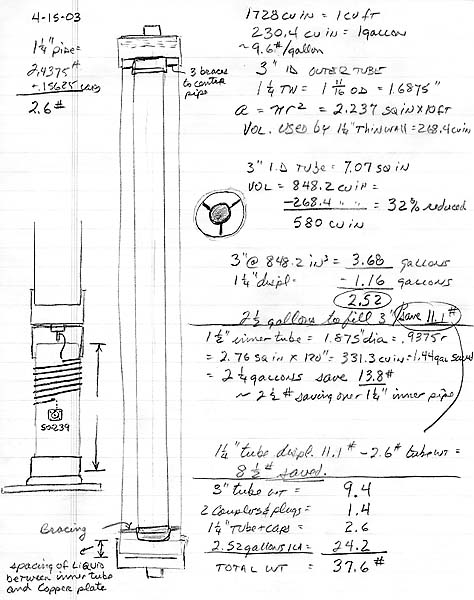

Will try adding a 10 foot section of 1-1/4 inch capped PVC in the center to create a hollow cylinder of ionic liquid.


Capacitive hat to lower resonance with copper disk floating probe.
Hat will incorporate 3 foot brazing rods.

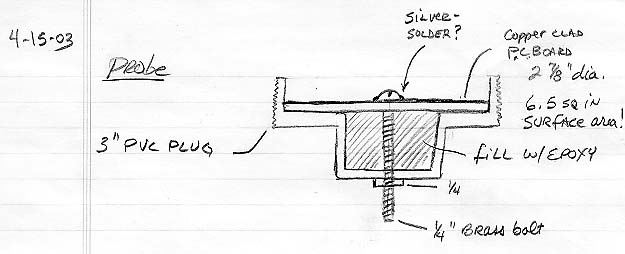

Probe idea. Uses copper disk for large surface area.
